Webservices Builder
This document gathers the minimum knowledge necessary for the adequate use of the services via Rest.
URL | Description | Parameters | Return |
|---|---|---|---|
/startWithMap/{name} | Starts an ESI flow by name | name: Name of the registered flow | Representation of the registered flow object |
/instance/initialize/{processInstanceId} | Retrieve the values of a process instance | processInstanceid: ID of the process instance | Representation of the registered process instance |
/instance/suspend/{processInstanceId} | Suspends a process instance | processInstanceid: ID of the process instance | Representation of the registered process instance |
/instance/restart/{processInstanceId} | Restarts a process instance | processInstanceid: ID of the process instance | Representation of the registered process instance |
/instance/reopen/{processInstanceId} | Reopens a process instance | processInstanceid: ID of the process instance | Representation of the registered process instance |
/userTask/{userTaskId} | Retrieves an user task | userTaskId: ID of the created user task | Representation of the registered process instance |
/rule/executeWithMap/{name} | Executes a business rule | name: Name of the registered business rule | Representation of the executed business rule |
- request body: JSON Object with the variables for the flow
- request body:JSON Object with the variables for the business rule
Table 1 - Specification of APPLICATION PROGRAMMABLE INTERFACES** **(API)
SPECIFIC GUIDELINES FOR REST API ACCESS
In the following sections, each type of intended use for the services available via Rest is detailed in the 4biz Enteprise Neuro product.
Authentication
To use the APIs, the client must be logged into Neuro. To do this, simply get a token from the authentication service and inject that token into the header of each REST request with the authentication-token identifier. Authentication is done through the POST /cit-esi-web/rest/security/token service, passing a JSON object with the username and password attributes in the body.
Business Objects REST API
Each business object provides a set of REST services that can be consumed from the URL /cit-esi-web/dynamic/{application name}/{business object name}. These are basic services for creating, updating, listing and deleting the business object, as well as a getStructure method that returns the metadata of the business object. Each SQL created in the business object can also be called in method form. Following are examples using the hotel business object of the hotels application. For each request, the authentication-token obtained in the login service must be provided. The url should end with ".json".

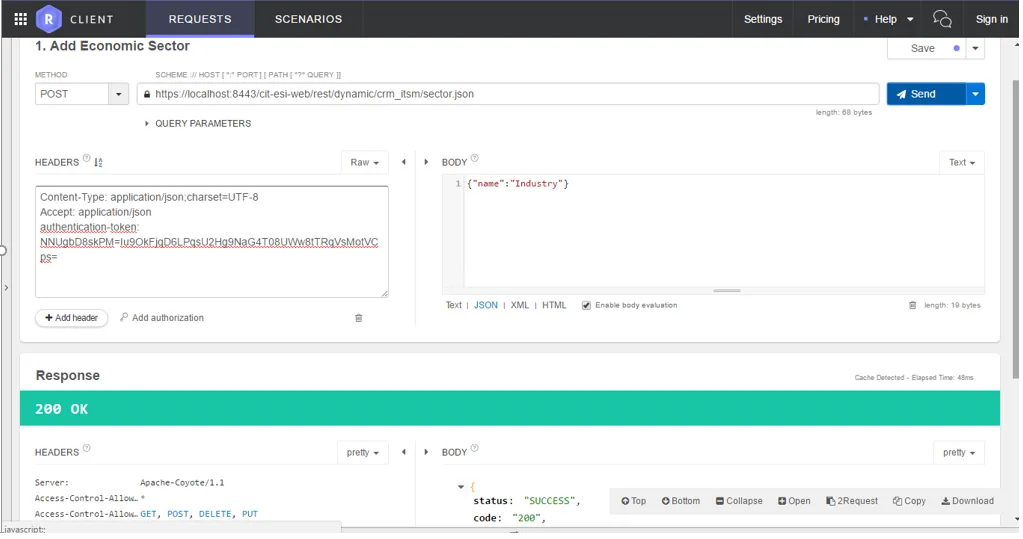

Inclusion of business object
- HTTP verb: POST
- URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}.json
- Body: JSON containing the attributes of the business object record to be included

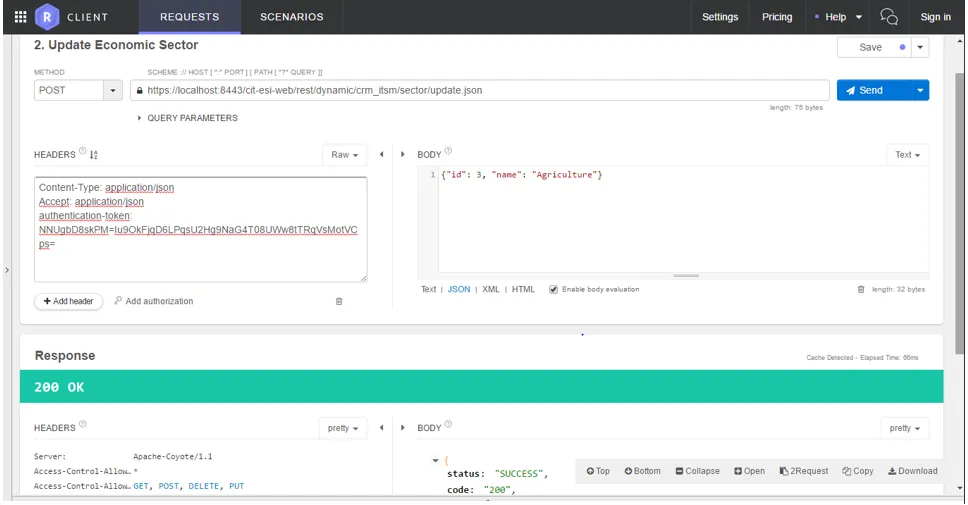

Business Object Change
- HTTP verb: POST
- URL: /cit-esi-web/rest/dynamic/{application name}/{business object name} /update.json
- Body: JSON containing the attributes of the business object record to be changed

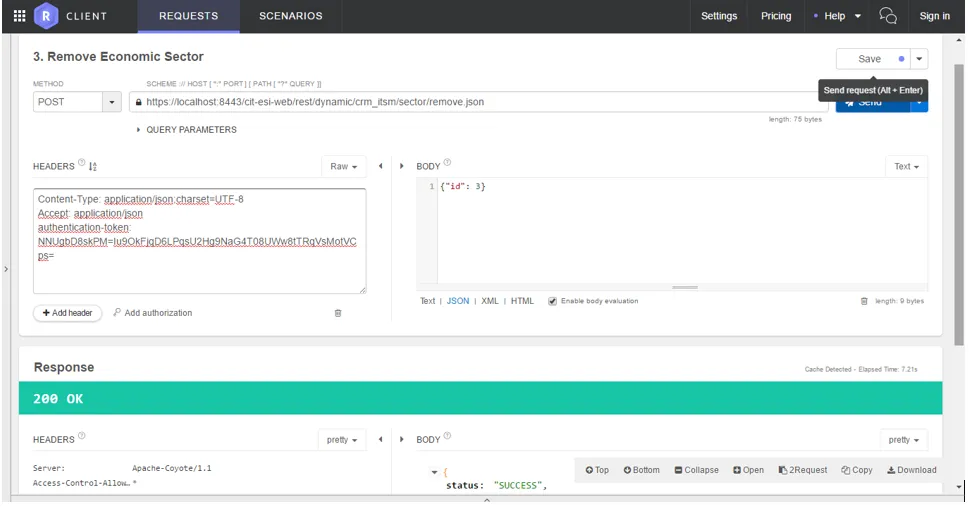

Business Object Deletion
- HTTP verb: POST
- URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}/remove.json
- Body: JSON containing the primary key of the business object record to be deleted

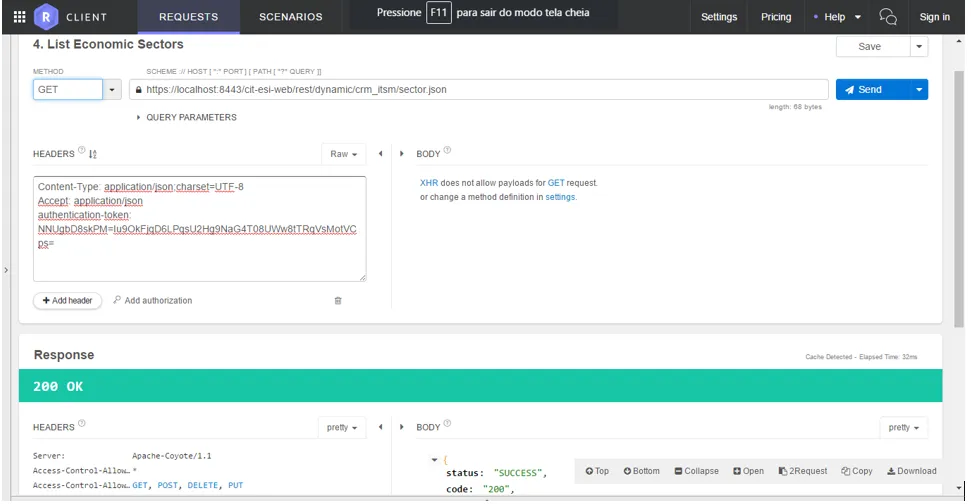

Listing of business objects
- HTTP verb: GET
- URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}.json

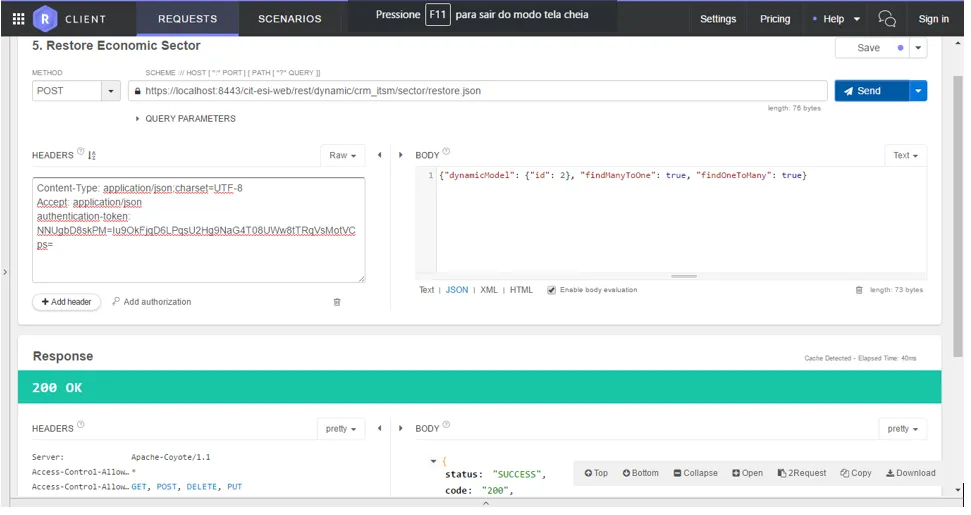

Business object recovery by primary key
- HTTP verb: POST
- URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}/restore.json
- Body: JSON containing:
- The primary key of the business object record to be deleted
- Attribute boolean findManyToOne, indicating whether the system should retrieve many relationships for one of the object
- Boolean findOneToMany attribute, indicating whether the system should retrieve one-to-many relationships from the object

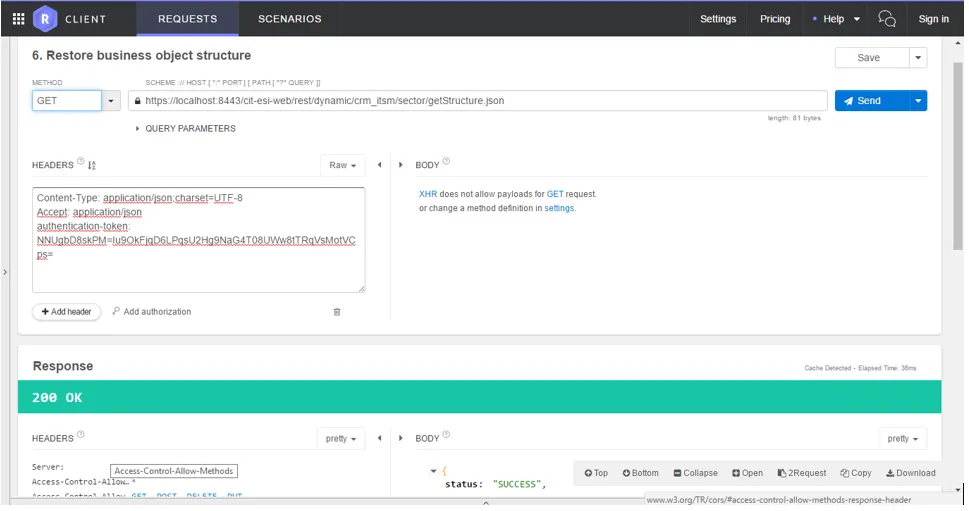

Retrieving the structure of the business object
- HTTP verb: GET
- URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}/getStructure.json

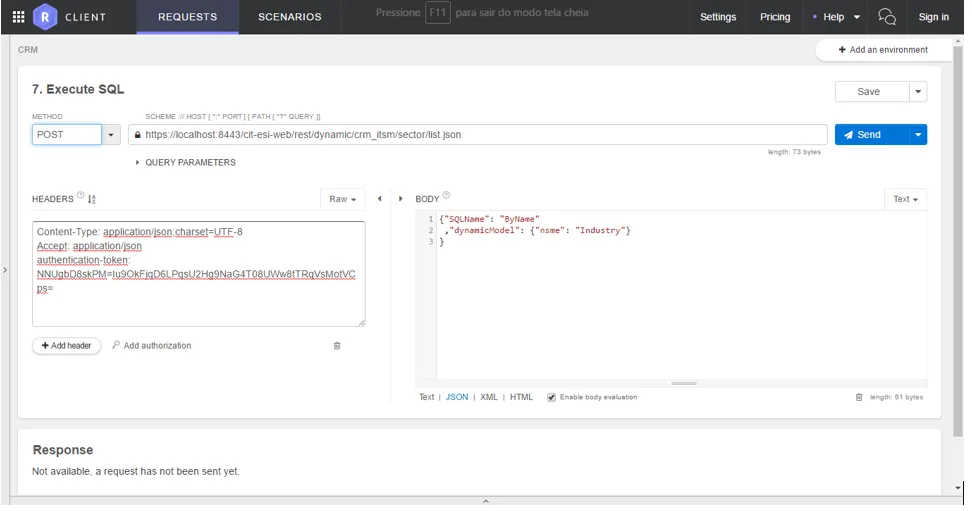

SQL Execution of the Business Object
- HTTP verb: POST
- URL: / cit-esi-web / rest / dynamic / {application name} / {business object name} /list.son
- Body: JSON containing:
- SQLName attribute with the name of the SQL to be executed
- JSON dynamicModel attribute containing the expected parameter values in SQL
- Attribute boolean findManyToOne (optional), indicating whether the system should retrieve many relationships for one of the object
- Attribute boolean findOneToMany (optional), indicating whether the system should retrieve one-to-many relationships from the object
Execution of ESI streams

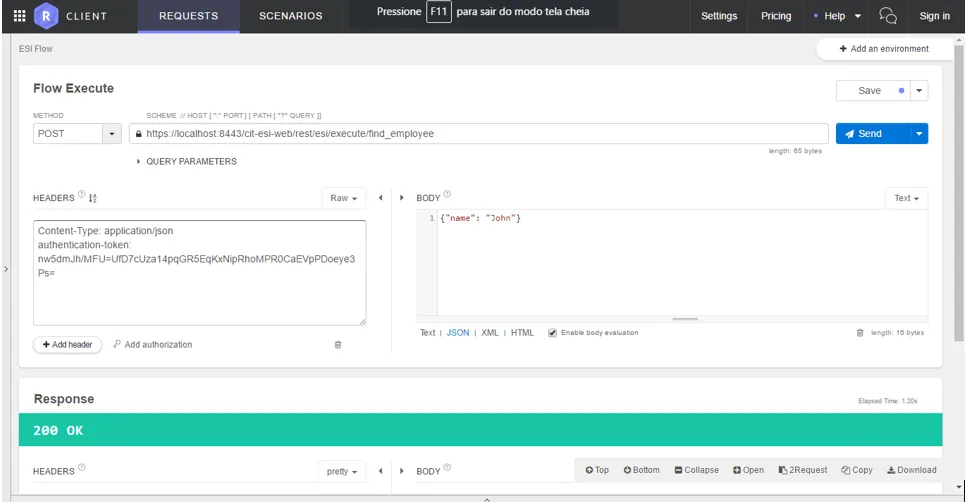

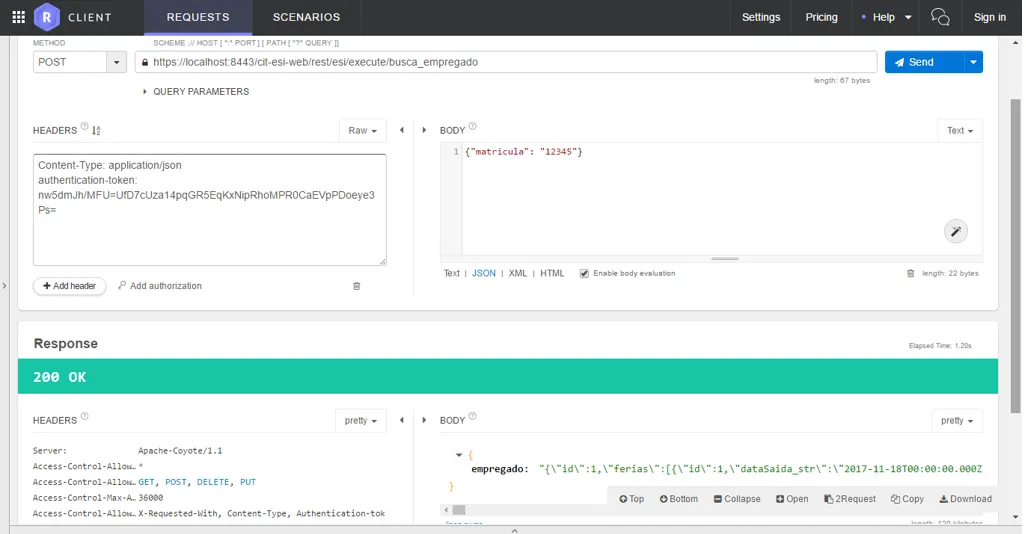

Any ESI stream can be executed via REST using the POST service /cit-esi-web/rest/esi/execute/{stream name}. For each request, the authentication-token obtained in the login service must be provided. In the body of the request a JSON containing the input variables required to execute the flow must be provided. The example below performs the job-search flow, providing the "12345" enrollment as the input variable of the stream. The stream returns the "employee" JSON object.
